Panasonic 18650 Cells Downtube Ebike Battery 36V 48V With Long Endurance

Model Number : TL-EB-H36

Certification : MSDS, UN38.3, IEC62133

Place of Origin : Made in China

MOQ : 50pcs

Price : Negociated

Payment Terms : T/T

Supply Ability : 1500pcs/day

Delivery Time : 30-45days

Packaging Details : Customer requirements

Model NO. : TL-EB-H36

Capacity : >1000MAH

Voltage : 36V and 48V

Usage : for Bicycle Power

HS Code : 8507600090

Type : Lithium-Ion Battery Pack

Contact Now

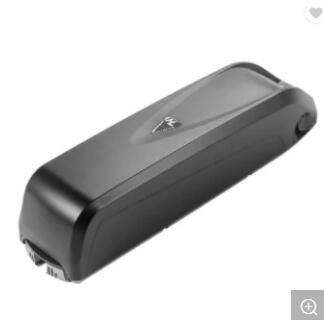

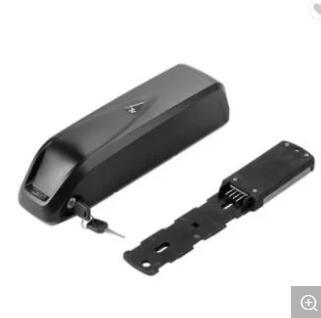

Long Endurance Panasonic 18650 Cells Hailong Downtube Case 36V 48V E-Bike Battery Akku Fur Elektrofahrrader

Product Description

Battery Specifications
Model Number	TL-EB-H36
Application	Electric Bicycles/Scooters
Rated Voltage	36V
Rated Capacity	13ah/14.5ah/17ah
Motor	374WH/410WH
Configuration	10S5P
Battery cells	Chinese cell /Samsung cell
Battery Type	Li(NiCoMn)O2 18650
Size	368mm * 90mm * 90mm
Discharge Cut-Off Voltage	36.4V
Charge Voltage	54.6V
Operate Temp. Charge	0~45 ℃
Operate Temp. Discharge	-20~60℃
Cycle Life	> 800 cycles
Weight	2.5-3.5KG
Place of Origin	Shenzhen,China
Warranty	1years

Long Endurance LG Samsung Panasonic 18650 Cells Hailong Downtube Case 36V 48V E-Bike Battery

Capable for Motor:

36V 250/350/500W
48V 350/500/750/1000/1200/200W
For higher power, please contact us for details.

Max cells		52pcs
Configuration		10S5P	13S4P
Capacity	2.2Ah	36V 11Ah	48V 8.8Ah
	2.6Ah	36V 13Ah	48V 10.4Ah
	2.9Ah	36V 14.5Ah	48V 11.6Ah
	3.2Ah	36V 16Ah	48V 12.8Ah
	3.5Ah	36V 17.5Ah	48V 14Ah

Parameters
Battery cell type	A grade 18650 cells
Max cells	52pcs
Charging port	DC2.1
Discharge port	4Pin
LED indicator	4 LED lights
Controller space	NO
Power switch	YES

Product Advantages
1. Environmental friendly
2. High density of energy
3. Light weight
4. Low self-discharge
5. Low internal resistance
6. Long cycle life, chargeable up to 800 times
7. No memory effect
8. Doesn't contain Mercury, No fire, No explosion, No leakage

Panasonic 18650 Cells Downtube Ebike Battery 36V 48V With Long Endurance
